AFFORDABLE BIG-BORE PERFORMANCE.

AFFORDABLE BIG-BORE PERFORMANCE.

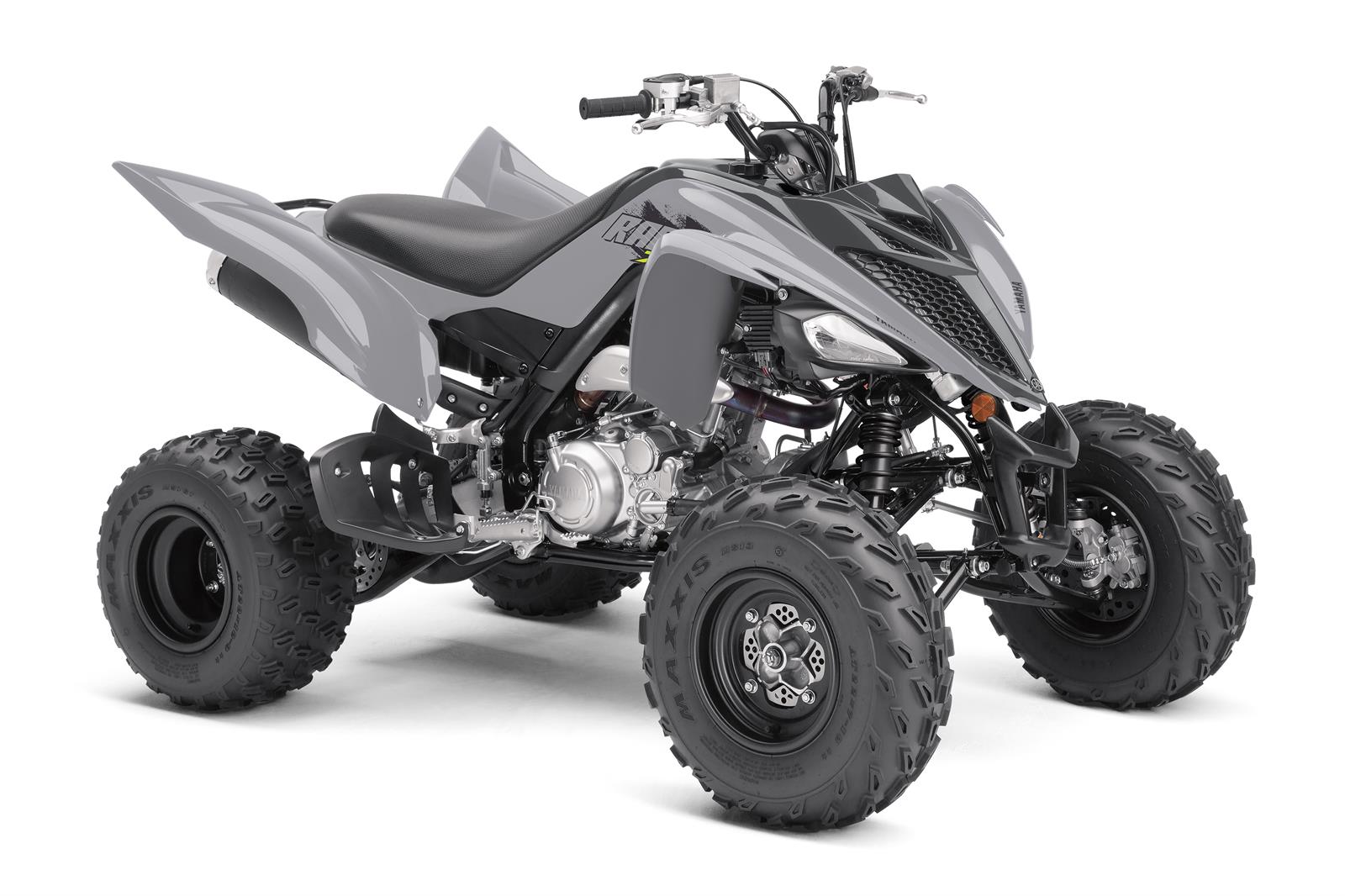

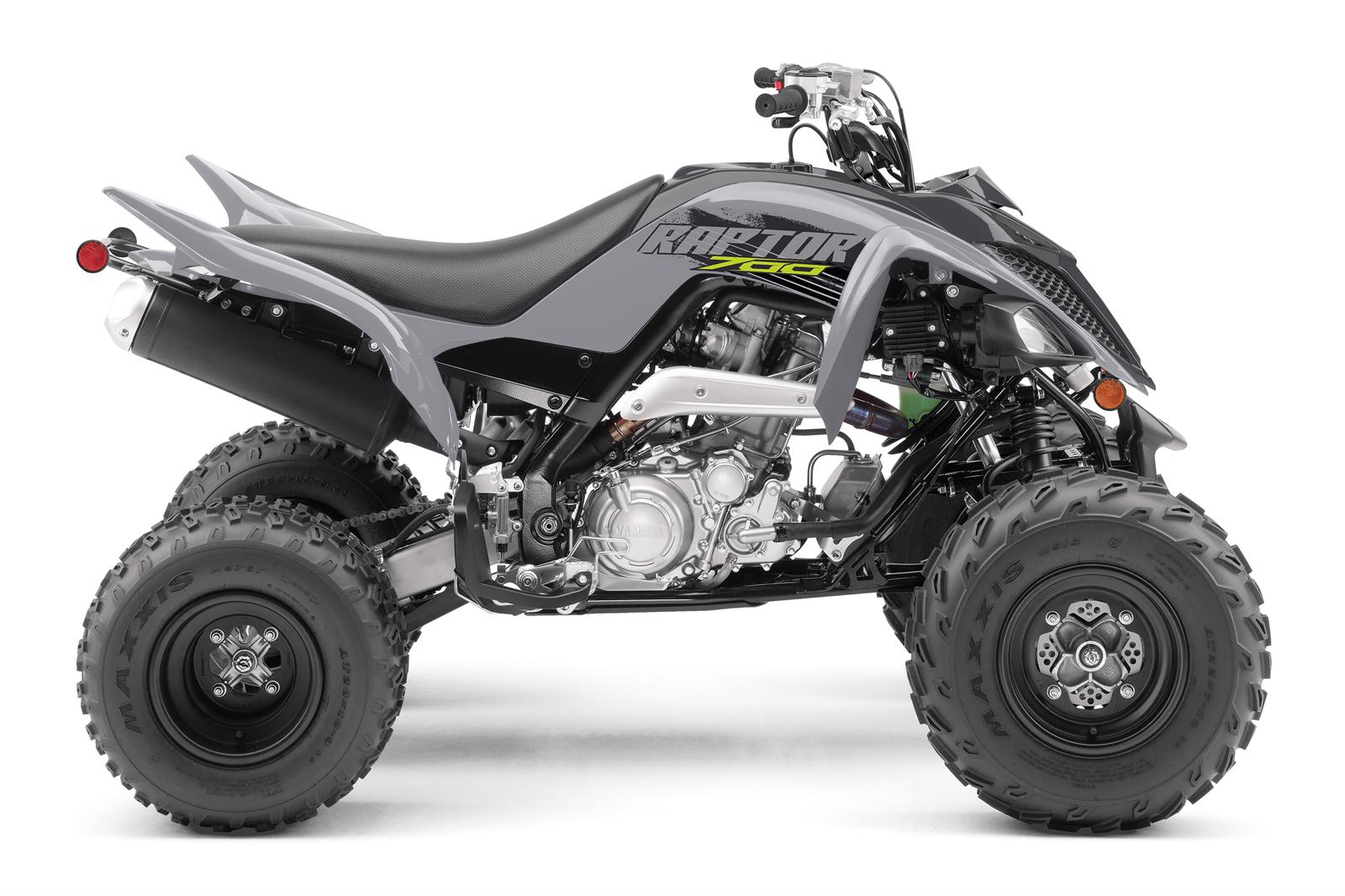

Based on the legendary R model, the Raptor 700 offers big bore performance for budget‑minded enthusiasts.

• Aggressive Style
Aggressive styling makes the Raptor 700 look as menacing as it really is. The mighty Raptor 700 is ready to go whether the destination is the dunes, the trails, or the track.

• Big-Bore Power
Powered by our most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever, this big-bore sport ATV produces big torque right off idle, transitioning into a fat mid-range, and monstrous top-end.

• Advanced Chassis
Big power and lightweight, a combination that makes any ATV rider take notice, come standard on the Raptor 700. With a hybrid steel aluminum frame, Controlled-Fill aluminum sub-frame, and cast aluminum swingarm, this combination produces a super-strong structure and the lightest ATV in its class.

• Comfortable Chassis
An advanced frame design incorporates a large 1.7-gallon fuel tank, plush seat, and roomy integrated floorboards inside a long, secure wheelbase.

• Rider-Friendly Features
A thick comfortable seat provides excellent comfort while the dual counterbalancers, electric starting, and reverse keep things nice and civilized when needed, but when it comes time to pull the trigger, the big-bore Raptor 700 stands tall.

COLOR OPTION:
• Armor Gray

At Yamaha, we want every ride to be safe and enjoyable. Always dress properly for your ride with a helmet, eye protection, and protective clothing. Avoid excessive speeds and never engage in stunt riding. Never ride under the influence of alcohol or drugs; it is illegal and dangerous. Always inspect your Yamaha before riding. Read the Owner's Manual and the product warning labels before operation. Yamaha and the Motor Safety Foundation encourage you to ride safely and respect the environment. For safety and training info, see your dealer or call MSF at 800-446-9227.

Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep, or destination charges. Actual prices set by dealer. Specifications subject to change without notice. This overview contains many of Yamaha's valuable trademarks. It may also contain trademarks belonging to other companies. Any references to other companies or their products are for identification purposes only, and are not intended to be an endorsement. © 2020 Yamaha Motor Corporation, U.S.A. All rights reserved.

ENGINE
Engine Type 686cc liquid-cooled SOHC 4-stroke 4 valves
Bore x Stroke 102.0mm x 84.0mm
Compression Ratio 10.0 to 1
Fuel Delivery Yamaha Fuel Injection (YFI), 44mm
Ignition TCI - Transistor Controlled Ignition
Starting System Electric
Transmission 5-speed w/reverse wet multi-plate clutch
Final Drive X-ring chain, 2WD
CHASSIS
Front Suspension Independent double wishbone and 5-way preload adjustment, 9.1-in travel
Rear Suspension Cast aluminum swingarm with preload adjustable shock, 10.1-in travel
Front Brakes Dual hydraulic disc
Rear Brakes Hydraulic disc
Front Tires AT22 x 7-10 Maxxis®
Rear Tires AT20 x 10-9 Maxxis®
DIMENSIONS
L x W x H 72.6 in x 45.5 in x 43.9 in
Seat Height 32.7 in
Wheelbase 50.4 in
Maximum Ground Clearance 9.4 in
Fuel Capacity 2.9 gal
Wet Weight 422 lbs
Lighting Dual 30W Krypton headlights and LED brake light
