CLASS LEADING

CLASS LEADING

The 2021 MXU 150X is a Class Leading Fully Automatic Utility ATV with Reverse and the following features:
• Y-12 compliant for ages 12 and up,
• 149cc SOHC 4-stroke, 3-valve single cylinder engine
• Forward, neutral and reverse transmission
• CVT transmission for safe automatic shifting from low to high speeds
• Front drum and rear disc brakes with parking brake lock
• Single front A-Arms with preload adjustable shocks
• Rear swing arm suspension with adjustable rear shock
• Dual headlights with high/low beam
• Dual tail and brake lights
• Steel front and rear luggage carriers

Instrumentation: Backlit digital display panel includes - Speed, odometer, fuel level, clock, high beam indicator, gear position and trip meter.

ATV Safety Training Offered with the Purchase of any Kymco Youth ATV

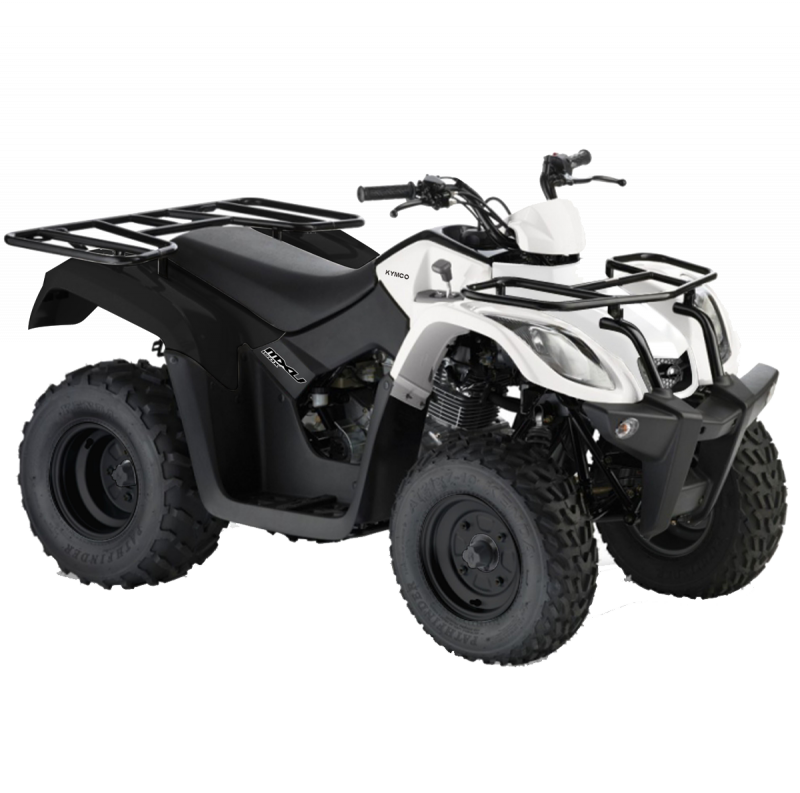

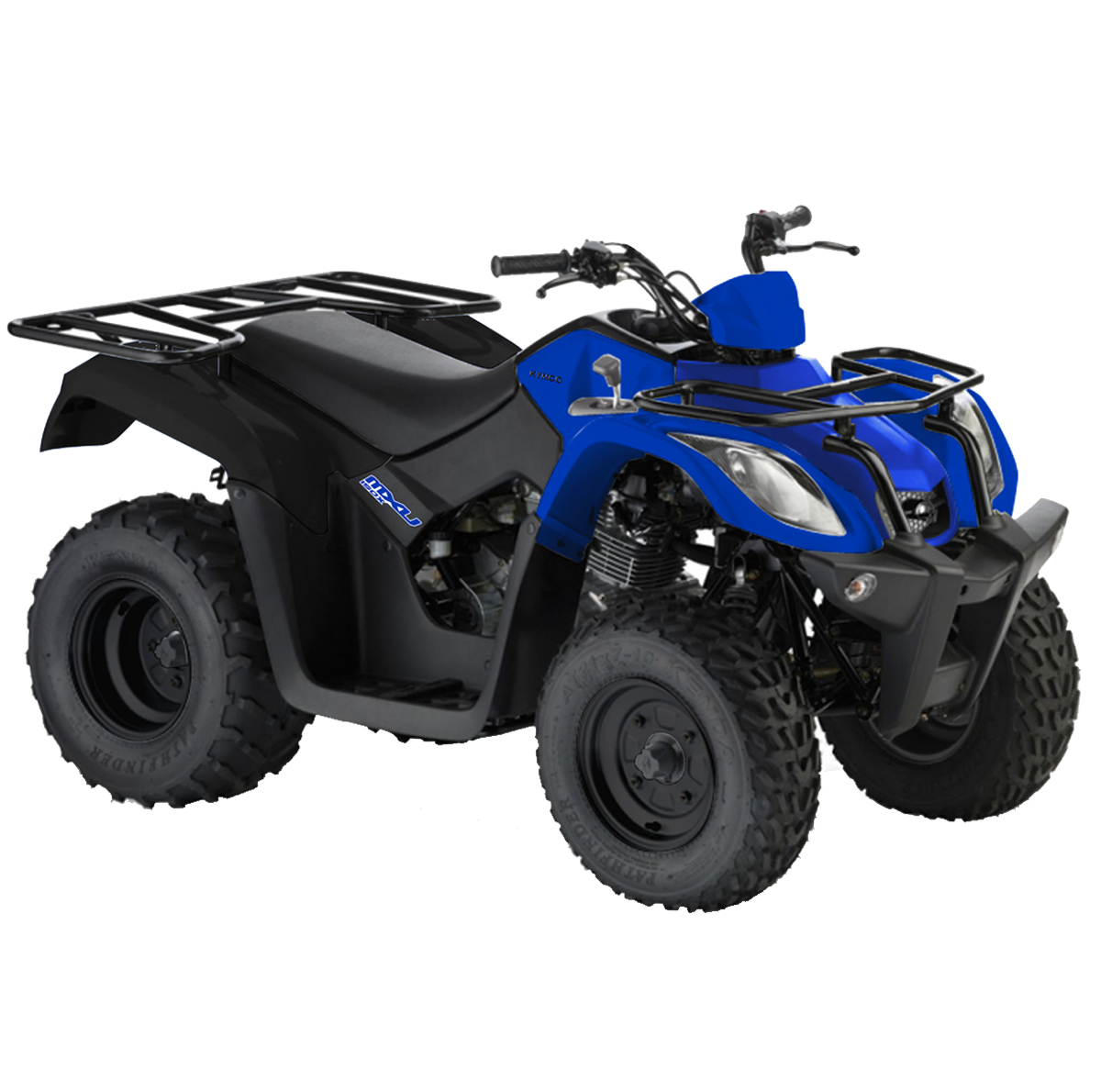

The 2021 MXU 150X is available in White/Black & Blue.

*Specifications and pricing are subject to change*

*Dealer sets the actual destination charge, your price may vary*

*Note: MSRP does not reflect destination or other dealer vehicle preparation charges. KYMCO USA makes every effort to present the most current specifications and model features. Equipment, colors, availability and specifications may change without notice or obligation. Some models are shown with optional equipment.

ENGINE
Engine Type SOHC 4-Stroke
Displacement 149cc
Bore x Stroke 62×49.5mm
Claimed Horsepower 10.9hp
Claimed Torque 7.95ft/lb @5500rpm
Fuel Management System Carburetor
Cooling Air
Ignition Electric/Kick
DRIVETRAIN & BRAKES
Transmission CVT Automatic F-N-R
Front Brakes Drum
Rear Brakes Hydraulic Disc
CHASSIS/ SUSPENSION
Front Suspension Single A-Arm/3.5 in.
Rear Suspension Single A-Arm/3.5 in.
Front Tires 21×7-10
Rear Tires 22×10-10
Shocks Oil Dampened Preload Adjustable
DIMENSIONS
Length 66.9 in.
Width 38.6 in.
Height 39.4 in.
Wheelbase 44.1 in.
Ground Clearance 5.5 in.
Dry Weight 348.3 lb.
Fuel Capacity 2.14gal
WARRANTY
Warranty 1 Year Limited Factory Warranty
