FITS IN THE BED OF A PICKUP TRUCK

FITS IN THE BED OF A PICKUP TRUCK

Styled in the image of its full-size MULE™ PRO siblings, the MULE SX™ family of side x sides packs plenty of stout muscle into a compact and agile two-passenger vehicle. Handle a wide variety of tasks with the ability to tread lightly and maneuver in tight areas - and fit in the bed of a full-size pickup truck.

ENGINE
RELIABLE POWER
401cc air-cooled, four-stroke engine packs plenty of power while the Continuously Variable Transmission (CVT) contributes to smooth power delivery.

CAPABILITY
GET MORE DONE
Handle almost any task with the MULE SX™ side x side's generous 1,100-lbs. towing capacity and 400-lbs. cargo bed capacity*.

DURABILITY
STRONG & DEPENDABLE
Steel cargo bed with textured floor is durable and scratch resistant. Built to last, all MULE SX™ side x side vehicles are backed by the industry-leading Kawasaki STRONG 3-Year Limited Warranty.

ADDITIONAL VEHICLE FEATURES:
• M2WD/dual-mode rear differential with diff. lock
• Continuously Variable Transmission (CVT) with (H,N,R)
• 22-inch Duro tires
• Halogen headlights

COLOR OPTIONS:

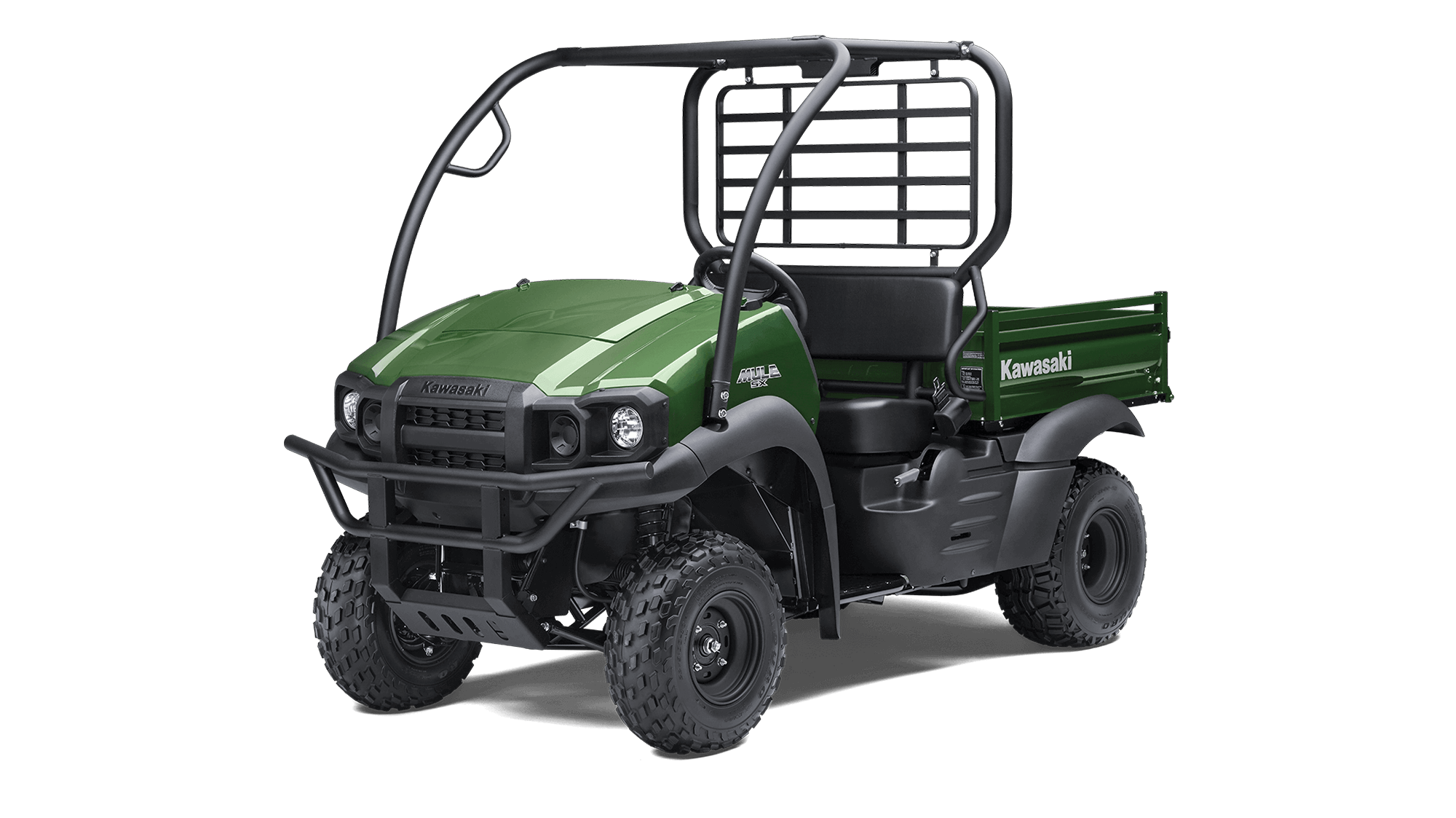

• Timberline Green

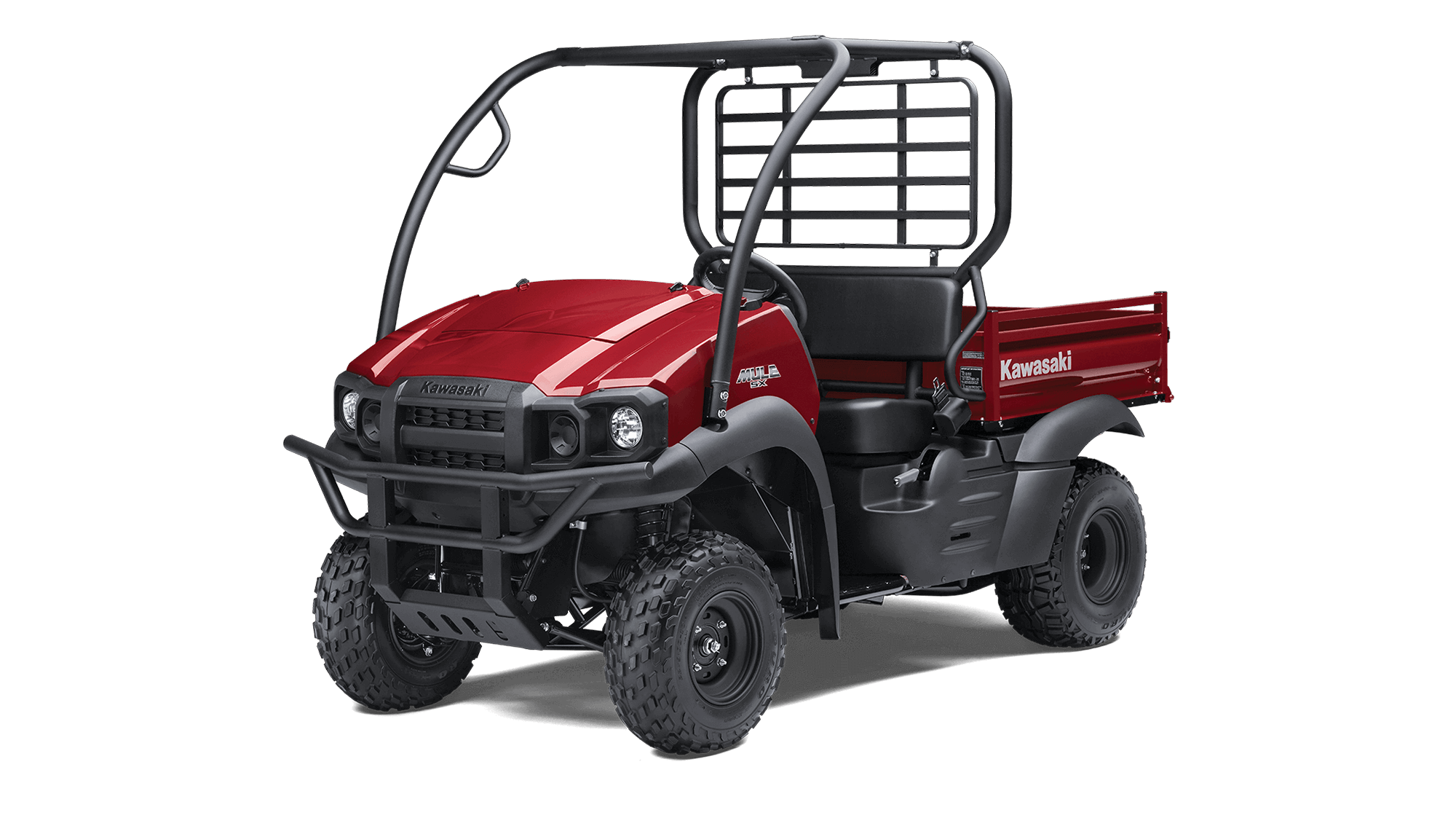

• Dark Royal Red

Warranty: Kawasaki Strong 3-Year Limited Warranty

† Specifications and pricing are subject to change.
Dealer sets the actual destination charge, your price may vary.

*Requires Optional Hitch

All MULE side x sides' Rollover Protective Structure (ROPS) meets the performance requirements of ISO 3471

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2020 Kawasaki Motors Corp., U.S.A.

POWER
Engine 4-stroke, single-cylinder, OHV, air-cooled
Displacement 401cc
Bore x Stroke 3.23x2.99 in
Compression Ratio 8.3
Maximum Torque 20.6 lb-ft @ 2200 rpm
Fuel System Nikki 6C1026 carburetor
Transmission Continuously Variable Transmission (CVT) with (H,N,R)
Final Drive 2WD, shaft. Dual mode rear differential with differential lock
Engine Braking No
Alternator Output (max) 17 amp
CAPABILITY
Front Suspension / Wheel Travel MacPherson Strut/3.1 in
Rear Suspension / Wheel Travel Unit Swingarm/3.1 in
Front Tires 22x9.00-10
Rear Tires 22x11.00-10
Park Brake Type Independent, Mechanical Drum
Steering Rack-and-pinion, Tilt steering
Front Brakes Drum
Rear Brakes Drum
Ground Clearance 6.1 in
Fuel Capacity 4.2 gal
Turning Radius 10.8 ft
Cargo Bed Dimensions (LxWxH) 35.6 x 40.9 x 9.6 in
Cargo Bed Capacity 400 lb
Load Capacity 926 lb
Seating Capacity 2
Towing Capacity 1100 lb
Lighting (2) Halogen headlights, tail/brake lights
DETAILS
Overall Length 106.7 in
Overall Width 52.6 in
Overall Height 70.1 in
Curb Weight 967.6 lb
Wheelbase 70.1 in
Wheel Type Steel
