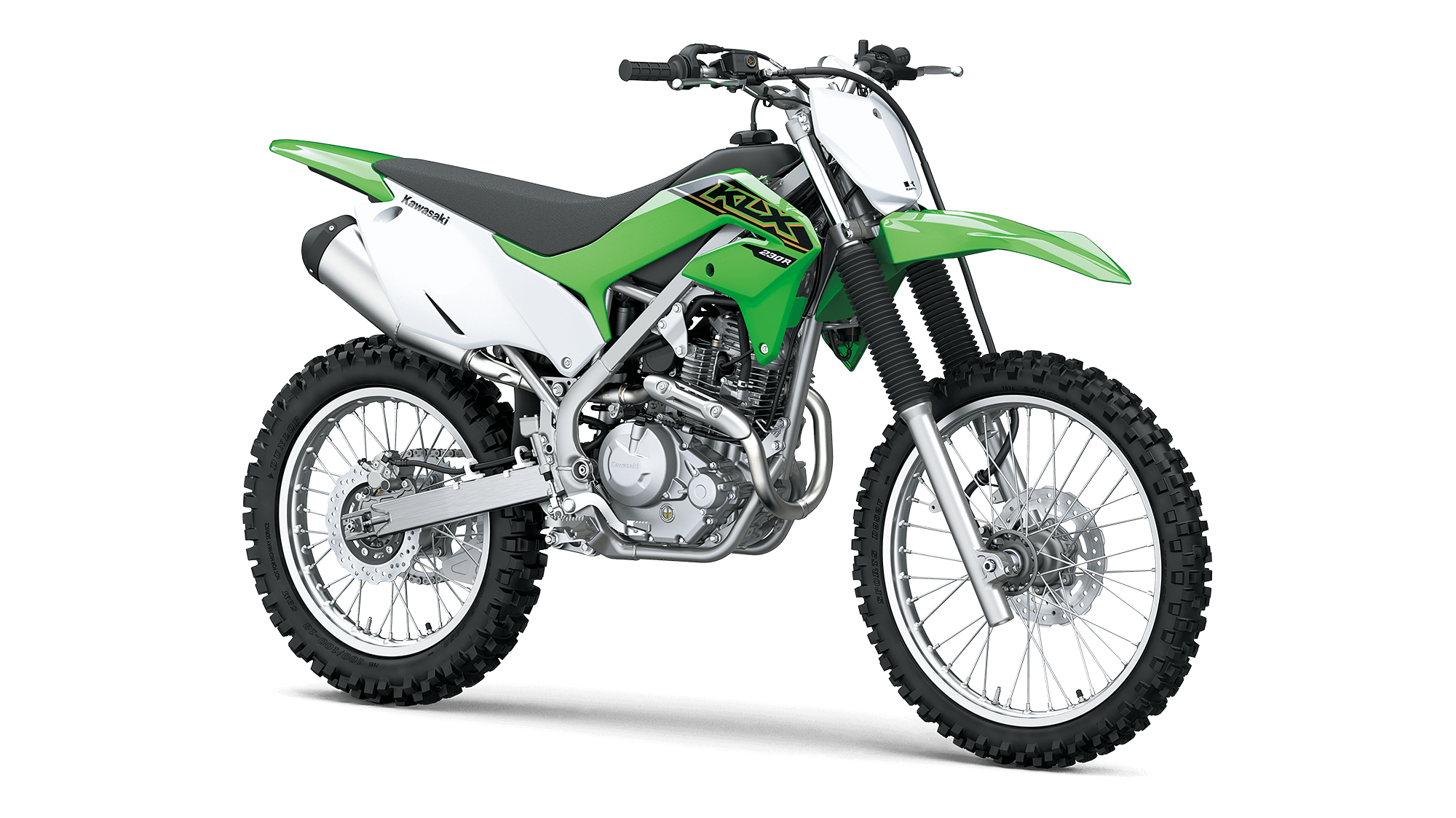

Take trail adventuring to the next level. With long travel suspension, and ample ground clearance, KLX®230R lightweight, full-size recreational trail bikes are purpose-built for serious fun in the dirt.

STEADY POWER
GO PLAY
The KLX®230R recreational off-road motorcycle is powered by a 233cc fuel-injected, air-cooled single, tuned for low- to mid-range power.

RUGGED CHASSIS
BUILT TOUGH
Designing the engine and chassis at the same time was key to making the KLX®230R play bike as agile, balanced and reliable as possible, appealing to new riders and fun for experienced riders.

HIGH-PERFORMANCE CAPABILITY
TAKE ON THE TRAILS
Designed from the ground up for dirt fun. That's why the KLX®230R off-road motorcycle features long-travel suspension, front and rear disc brakes and full-size wheels.

TRAIL-RIDING PERFORMANCE
BLAZE YOUR OWN TRAILS
With long-travel suspension, light weight and ample ground clearance, the KLX®230R is the ideal off-road adventure partner for pure off-road performance.

ADDITIONAL VEHICLE FEATURES:
• Compact perimeter frame
• Hassle-free electric start
• Full-size wheels
• KX™-inspired styling and ergonomics

COLOR OPTION:
• Lime Green

Warranty: 6 Months

† Specifications and pricing are subject to change.
Dealer sets the actual destination charge, your price may vary.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner's Manual. ©2020 Kawasaki Motors Corp., U.S.A.

POWER
Engine 4-stroke single, SOHC, air-cooled
Displacement 233cc
Bore x Stroke 67.0 x 66.0mm
Compression Ratio 9.4
Fuel System DFI® with 32mm Keihin throttle body
Ignition TCBI Electronic Advance
Transmission 6-speed, return shift with wet multi-disc manual clutch
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 37mm telescopic fork/9.8 in
Rear Suspension / Wheel Travel Uni-Trak® linkage system and single shock with adjustable spring preload/9.9 in
Front Tire 80/100-21
Rear Tire 100/100-18
Front Brakes Single 240mm petal disc with a dual-piston caliper
Rear Brakes Single 220mm petal disc with single-piston caliper
DETAILS
Frame Type High-tensile steel, box-section perimeter
Rake/Trail 26.5/4.4 in
Overall Length 80.5 in
Overall Width 33.1 in
Overall Height 47.2 in
Ground Clearance 11.8 in
Seat Height 36.2 in
Curb Weight 253.6 lb / 262.3 lb. CA model**
Fuel Capacity 1.7 gal
Wheelbase 53.5 in
