GET OUT AND PLAY

GET OUT AND PLAY

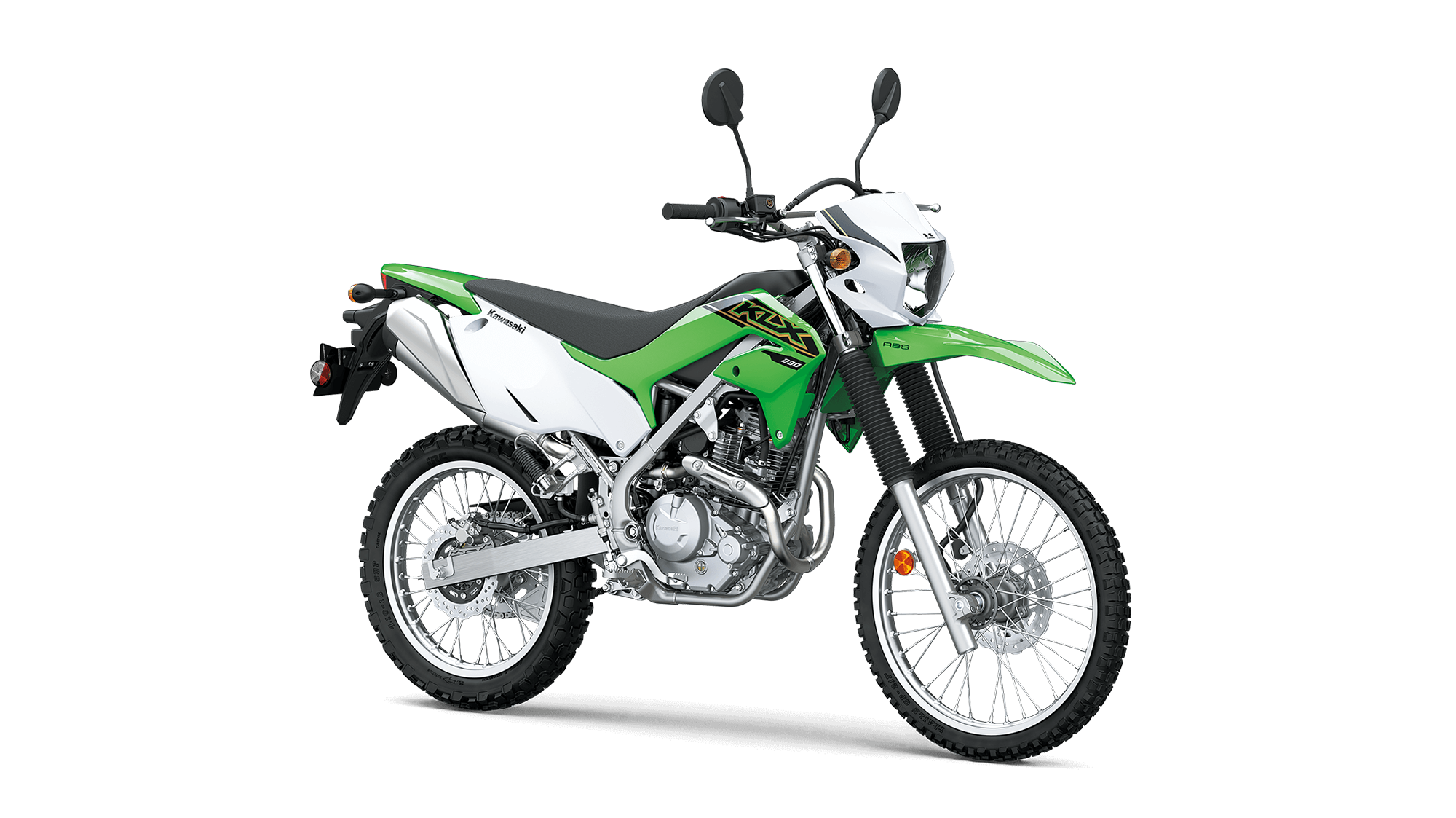

Purpose-built for serious fun on the trails and tuned for on-road versatility, KLX® 230 dual-sport motorcycles keep going when the road ends.

STEADY POWER
GO PLAY
The KLX® 230 dual-purpose motorcycle is powered by a 233cc fuel-injected, air-cooled single, tuned for low- to mid-range power.

RUGGED CHASSIS
BUILT TOUGH
Designing the engine and chassis at the same time was key to making the KLX®230R play bike as agile, balanced and reliable as possible, appealing to new riders and fun for experienced riders.

HIGH-PERFORMANCE CAPABILITY
TAKE ON THE TRAILS
Designed from the ground up for dirt fun. That's why the KLX® 230 motorcycle features long travel suspension, front and rear disc brakes and full-size wheels.

DUAL-SPORT CAPABILITY
TAKE ON THE STREET AND DIRT
Designed for the trails and tuned for on-road versatility, let the KLX® 230 motorcycle take you to new heights with on- and off-road capability.

ADDITIONAL VEHICLE FEATURES:
• Responsive power
• Compact perimeter frame
• Full-size wheels
• Hassle-free electric start
• KX™-inspired styling and ergonomics
• Available with Kawasaki's first dual-purpose ABS - MSRP Starting at $4,899

COLOR OPTION:
• Lime Green

Warranty: 12 Months

† Specifications and pricing are subject to change.
Dealer sets the actual destination charge, your price may vary.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner's Manual. ©2020 Kawasaki Motors Corp., U.S.A.

POWER
Engine 4-stroke single, SOHC, air-cooled
Displacement 233cc
Bore x Stroke 67.0 x 66.0mm
Compression Ratio 9.4
Fuel System DFI® with 32mm Keihin throttle body
Ignition TCBI Electronic Advance
Transmission 6-speed, return shift with wet multi-disc manual clutch
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 37mm telescopic fork/8.7 in
Rear Suspension / Wheel Travel Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
Front Tire 2.75 x 21
Rear Tire 4.10 x 18
Front Brakes Single 265mm petal disc with a dual-piston caliper with Dual Purpose ABS
Rear Brakes Single 220mm petal disc with single-piston caliper with Dual Purpose ABS
CHASSIS MANAGEMENT TECHNOLOGY
ABS (Anti-lock Brake System) Optional
DETAILS
Frame Type High-tensile steel, box-section perimeter
Rake/Trail 27.5/4.6 in
Overall Length 82.9 in.
Overall Width 32.9 in.
Overall Height 45.9 in.
Ground Clearance 10.4 in.
Seat Height 34.8 in.
Curb Weight 293.3 lb. / 295.5 lb. CA model**
Fuel Capacity 2.0 gal.
Wheelbase 54.3 in.
