NEVER TOO YOUNG TO LEARN - IN A MINI.

NEVER TOO YOUNG TO LEARN - IN A MINI.

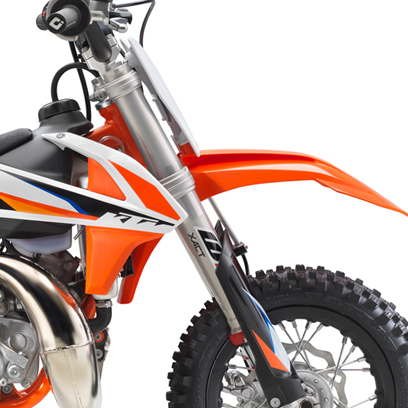

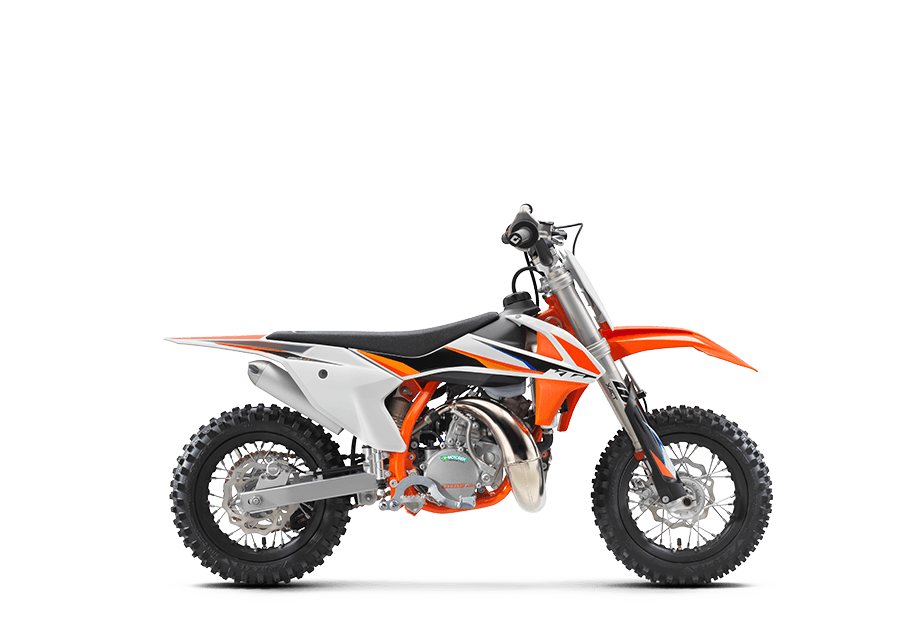

The KTM 50 SX Mini is a true KTM for young MX riders aged between 4 and 10 years old. It is a genuine dirt bike that, like its bigger siblings, is produced with top-quality components. This makes the KTM 50 SX Mini the first choice when stepping into the world of MX. Developed with the youngster in mind, this package has an engine that delivers steady, controllable power, incorporating an automatic clutch that is ideal for novice riders. It also features the latest WP XACT front fork with revolutionary AER technology, fully adjustable rear suspension, ultra-cool graphics and the ability to make going fast fun.

PERFECTLY ARRANGED - ENGINE

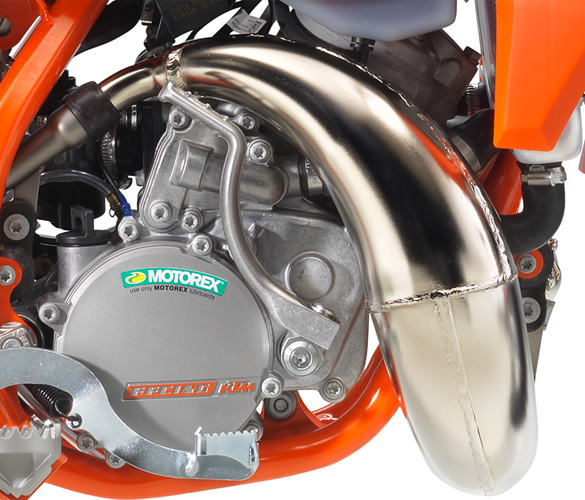

The high performance cylinder, exhaust pipe and reed intake system are perfectly arranged for maximum performance, setting the standard in the highly competitive 50 cc class.

AS EASY AS TWISTING THE THROTTLE - CLUTCH
Developed by KTM, the centrifugal multi-disc automatic clutch provides manageable acceleration and makes riding this motorcycle as easy as twisting the throttle. It can be adjusted to the specific requirements of the track and the rider in minutes and without any special tools.

EASY HANDLING - FRAME
The modern frame is made from lightweight, high strength chromoly steel profiles and combines maximum longitudinal stiffness with optimum torsional rigidity. It guarantees easy handling and precise cornering, but also outstanding stability.

LIKE FULL SIZE RACERS - WHEELS
Like the full-size KTM Factory racers, the 50 SX MINI has super lightweight, black anodized, aluminum rims providing the highest strength and durability. The OEM MAXXIS knobby tires grip superbly on any surface.

OVERALL STABILITY - HANDLEBAR
The KTM 50 SX MINI uses a perfectly shaped handlebar made from a high-quality aluminum alloy. It provides a great feeling of control for the rider, helping with overall stability. A pad around the center brace also protects the rider from hard knocks.

EXTERIOR COLORS:
• White/ Orange

Advertised pricing excludes applicable taxes title and licensing and are subject to change without notice. The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.

ENGINE
TRANSMISSION Single-speed automatic
STARTER Kickstarter
STROKE 40 mm
BORE 39.5 mm
CLUTCH Centrifugal clutch (adjustable)
DISPLACEMENT 49 cm³
DESIGN 1-cylinder, 2-stroke engine
CHASSIS
WEIGHT (WITHOUT FUEL) 40 kg
TANK CAPACITY (APPROX.) 2.1 l
FRONT BRAKE DISC DIAMETER 160 mm
REAR BRAKE DISC DIAMETER 160 mm
FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 1/2 x 3/16
FRAME DESIGN 25CrMo4 steel central-tube frame
FRONT SUSPENSION XACT 35 WP Upside-Down fork, Ø 35 mm
GROUND CLEARANCE 184 mm
REAR SUSPENSION XACT WP mono shock
SEAT HEIGHT 558 mm
STEERING HEAD ANGLE 67.4 °
SUSPENSION TRAVEL (FRONT) 100 mm
SUSPENSION TRAVEL (REAR) 147 mm
