VICTORY… NEVER GIVEN ALWAYS EARNED

VICTORY... NEVER GIVEN ALWAYS EARNED
Step up to the perfect bike and earn victory after victory aboard this lightweight, 2 stroke that boasts reliability and agility.

• YPVS™ Two-Stroke Power

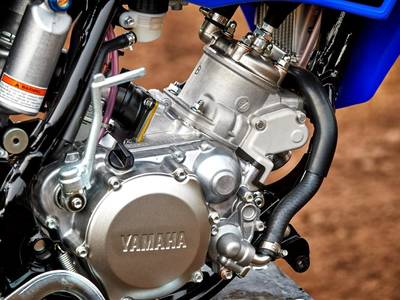

The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System for broad, tractable power across the rev range without losing peak power at high rpm.
• Fully-Adjustable Suspension
Lightweight 36mm KYB® inverted cartridge fork features low-friction outer tubes, plenty of travel, and external compression and rebound damping adjustability, mated to a race-proven fully-adjustable rear shock.
• High-Spec Wheels and Brakes
Lightweight 17-inch front and 14-inch rear rims are durable and reduce unsprung weight for optimal suspension performance, utilize big 220mm and 190mm disc brakes for precise control, and feature Dunlop® MX3S® knobbies for exceptional traction.
• Adjustable Rider Ergonomics
The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the ergonomics to suit their size and preferences.

COLOR OPTION:
• Team Yamaha Blue

At Yamaha, we want every ride to be safe and enjoyable. Always dress properly for your ride with a helmet, eye protection and protective clothing. Avoid excessive speeds and never engage in stunt riding. Never ride under the influence of alcohol or drugs; it is illegal and dangerous. Always inspect your Yamaha before riding. Read the Owner's Manual and the product warning labels before operation. Yamaha and the Motor Safety Foundation encourage you to ride safely and respect the environment. For safety and training info, see your dealer or call MSF at 800-446-9227.

Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer. Specifications subject to change without notice. This overview contains many of Yamaha's valuable trademarks. It may also contain trademarks belonging to other companies. Any references to other companies or their products are for identification purposes only, and are not intended to be an endorsement. © 2020 Yamaha Motor Corporation, U.S.A. All rights reserved.

ENGINE
Engine Type 85cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke 47.5mm x 47.8mm
Compression Ratio 8.2~9.6
Fuel Delivery Keihin® PWK28 carburetor
Transmission 6-speed; multiplate wet clutch
Final Drive Chain
CHASSIS
Suspension / Front Inverted fork; fully adjustable, 10.8-in travel
Suspension / Rear Single shock; fully adjustable, 11.1-in travel
Brakes / Front Hydraulic disc, 220mm
Brakes / Rear Hydraulic disc, 190mm
Tires / Front 70/100-17 Dunlop® MX3S®
Tires / Rear 90/100-14 Dunlop® MX3S®
DIMENSIONS
L x W x H 71.7 in x 29.9 in x 45.1 in
Seat Height 33.1 in
Wheelbase 49.4 in
Rake (Caster Angle) 26.3°
Trail 3.5 in
Maximum Ground Clearance 13.0 in
Fuel Capacity 1.3 gal
Wet Weight 161 lb
OTHER
Warranty 30 Day (Limited Factory Warranty)
