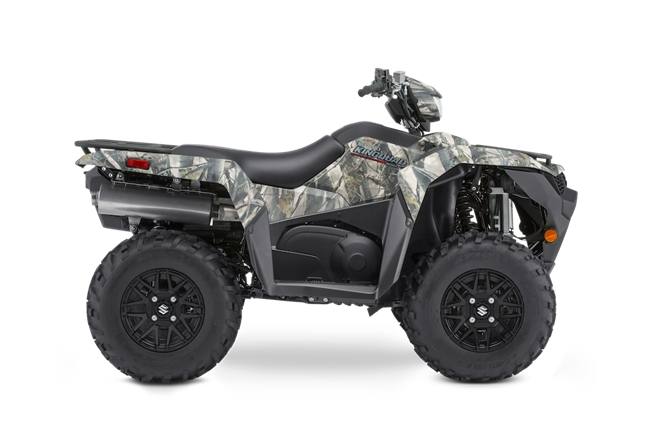

2020 Suzuki KingQuad - 500AXi Power Steering SE Camo

$9,349.00

2020 Suzuki KingQuad 500AXi Power Steering SE Camo

The KingQuad 500AXi Power Steering Camo SE is not just an ATV, it's a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world's best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. Each model is easy to ride on any terrain with the capabilities that only a KingQuad possesses.

Key Features
• True Timber XD3 Camouflage, blacked-out cast aluminum wheels, and electronic power steering
• Generous towing capacity, fully independent suspension, and easy to ride on any terrain
• Torque-rich, EFI-fed engine, and Quadmatic™ transmission with effective engine braking
• Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel
• Wide range of accessories lets you set up your KingQuad for any mission

Engine Features
• The powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.
• The cylinder head and cylinder are canted forward for a low center of gravity, resulting in reduced engine height and lower seat height. The engine also features a balancer shaft for smooth operation.
• The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjuster simplify maintenance.
• A lightweight aluminum cylinder uses SCEM (Suzuki Composite Electrochemical Material) coating for excellent heat transfer and ring sealing, resulting in superb combustion chamber efficiency.

COLOR OPTIONS:
• True Timber XD3 Camouflage

WARRANTY: The 12-month limited warranty is double the length of most other youth ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).

Along with concerned conservationists everywhere, Suzuki urges you to Tread Lightly!® on public and private land. Preserve your future riding opportunities by showing respect for the environment, local laws, and the rights of others when you ride.

Suggested Starting Price shown does not include tax, title, or destination charge. Dealer prices may vary. Contact your Suzuki dealer for details. Suzuki, the "S" logo, and the Suzuki model and product names are Suzuki Trademarks or ®. © Suzuki Motor of America, Inc. 2020.

Engine
Engine Type 4-stroke, 4-valve, OHC single cylinder
Displacement 493cc (30.1 cu. in.)
Bore and Stroke 3.40 x 3.20 in. (87.5 mm x 82.0 mm)
Cooling Liquid
Fuel System Suzuki electronic fuel injection
Starting System Electric
Transmission
Transmission Automatic variable ratio (V-belt), with high/low-range, and reverse
Final Drive Shaft drive
Chassis
Front Suspension Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Rear Suspension Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Front Brakes Disc brakes, twin rotors
Rear Brakes Sealed oil-bathed multi-disc
Front Tire AT25 x 8-12, tubeless type x 2
Rear Tire AT25 x 10-12, tubeless type x 2
Dimensions
Wheelbase 50.6 in. (1285 mm)
Ground Clearance 10.2 in. (260 mm)
Fuel Capacity 4.6 US gal. (17.5 L)
Dry Weight Curb Weight - 714 lb. (324 kg)
Machine Dimensions (LxWxH) 84.6 in. (2150 mm) x 47.8 in. (1215 mm) x 50.6 in. (1285 mm)
