| Engine & Drivetrain | |
|---|---|
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance True On-Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 110 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| Dimensions | |
| Bed Box Dimensions (L x W x H) | 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm) |
| Box Capacity | 300 lb (136.1 kg) |
| Estimated Dry Weight | 1,659 lb (752.5 kg) |
| Fuel Capacity | 9.5 gal (35.9 L) |
| Ground Clearance | 14 in (35.6 cm) |

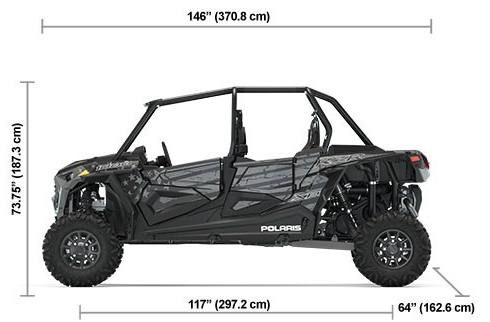

| Overall Vehicle Size (L x W x H) | 146 x 64 x 73.75 in (370.8 x 162.6 x 187.3 cm) |
| Payload Capacity | 900 lb (408 kg) |
| Wheelbase | 117 in (297.2 cm) |
| Brakes | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park In-Transmission |
| Additional Specifications | |
| Cargo System | Lock & Ride |
| Doors | Bowed 1/4 Doors |
| Hitch Towing Rating | N/A |
| Hitch Type | Not Equipped |
| Instrumentation | Dual-sweep Analog Dials w/ 4 in LCD Rider Information Center; User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet |
| Lighting | Front Blacked Out Signature White LED Low/High w/ Accent Lights & Red LED Tail / Brake Lights |
| Seat Type | Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts |
| Tires / Wheels | |
| Electronic Power Steering | Standard |
| Front Tires | 29 x 9-14; Maxxis Bighorn |
| Rear Tires | 29 x 11-14; Maxxis Bighorn |
| Wheels | Cast Aluminum |
| Suspension | |
| Front Shocks | 2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers |
| Front Suspension | Dual A-Arm with Stabilizer Bar and 21 in (53.4 cm) Usable Travel, 16in (40.6 cm) of Wheel Travel |
| Rear Shocks | 2.5 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers |
| Rear Suspension | Trailing Arm with Stabilizer Bar and 21 in (53.4 cm) Usable Travel, 18 in (45.7 cm) of Wheel Travel |
