Engine & Drivetrain |
|
Cooling |
Liquid |
Cylinders Displacement |
567cc |
Drive System Type |
On-Demand True AWD/2WD/VersaTrac Turf Mode |
Engine Type |
4-Stroke Single Cylinder DOHC |
Fuel System/Battery |
Electronic Fuel Injection |
Horsepower |
44 HP |
Transmission/Final Drive |
Automatic PVT H/L/N/R/P; Shaft |
Dimensions |
|
Bed Box Dimensions (L x W x H) |
36.5 x 54 x 11.5 in (93 x 137 x 29 cm) |
Box Capacity |
800 lb (363 kg) |
Estimated Dry Weight |
1,392 lb (631 kg) |
Fuel Capacity |
9 gal (34.1 L) |
Ground Clearance |
10.5 in (26.7 cm) |

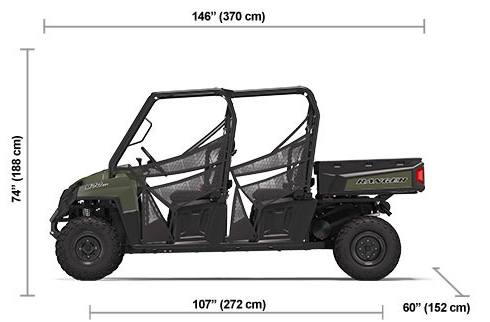

Overall Vehicle Size (L x W x H) |
146 x 60 x 74 in (370 x 152 x 188 cm) |
Payload Capacity |
1,500 lb (680.4 kg) |
Seating Cpacity |
6 |
Wheelbase |
107 in (271.8 cm) |
Brakes |
|
Front/Rear Brakes |
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
Parking Brake |
Park In-Transmission |
Additional Specifications |
|
Cargo System |
Lock & Ride |
Hitch Towing Rating |
1,500 lb (680.4 kg) |
Hitch Type |
Standard 2 in (5 cm) Receiver |
Instrumentation |
Single Analog Dial with 2 in LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet |
Lighting |
50W Headlight, LED Tail |
Tilt Steering |
Standard |
Tires / Wheels |
|
Electronic Power Steering |
Optional Accessory |
Front Tires |
25 x 10 -12; 489 |
Rear Tires |
25 x 10-12; 489 |
Wheels |
Stamped Steel |
Suspension |
|
Front Suspension |
MacPherson Strut 9 in (22.9 cm) Travel |
Rear Suspension |
Dual A-Arm, IRS 10 in (25.4 cm) Travel |
